Cmt 35 Frequency And Voltage Converters
The CMT 35 Frequency and Voltage Converters are made up of an electric motor combined to a permanent magnet generator which decreases the single-phase or three-phase input voltage to less than 50 V while raising the frequency to 200 Hz, which is required for the proper implementation of electric internal vibrators and thus maintaining operator safety as occurs with low voltage equipment. In addition, continuous duty is possible by the use of CMT 35 Frequency and Voltage Converters.
Product details
Frame | Wheeled |
Input Voltage | 400V 3ph 50Hz |
Output Voltage | 42V +/- 10% 3ph 200Hz |
Model | CMT 35 |
Supply Electric Cable | 5.0 m |
Output Power | 2.6 kVA |
Output Current | 36 A |
Input Power | 3.3 kW |
Input Current | 6 A |
Specification
CMM 15 | 1x VHN 38 | 1x VHN 50 | 1x VHN 59 | | | |

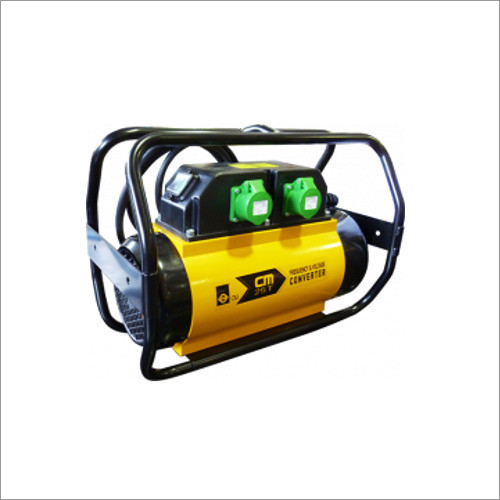

CMM 25 | 2x VHN 38 | 2x VHN 50 | 2x VHN 59 | 4x VHN 59 | 1x VHP 59 | 1x VHP 65 |
CMT 25 | 2x VHN 38 | 2x VHN 50 | 2x VHN 59 | 1x VHP 50 | 1x VHP 59 | 1x VHP 65 |
CMT 35 | 3x VHN 38 | 3x VHN 50 | 3x VHN 59 | 2x VHP 50 | 2x VHP 59 | 1x VHP 65 |
CMT 55 | 3x VHN 38 | 3x VHN 50 | 3x VHN 59 | 3x VHP 50 | 3x VHP 59 | 2x VHP 65 |
CMT 85 | 4x VHN 38 | 4x VHN 50 | 4x VHN 59 | 4x VHP 50 | 4x VHP 59 | |
